Monoblock Condensinng Unit Cold Room

Detailed Product Description

APPLICATIONS.

Wholesale market of agricultural products

Synthetic logistics center

Cold chain storage center

Seed storage room

Biological medicine storage

Chain hotels

Food processing enterprise

Medical Laboratory

Meat-processing enterprise chain center

Dairy enterprise

Edible fungus breeding center

Commercial supermarket chain store
Product Details
Product Tags
Detailed Product Description

Cover: Anti-corrosion Temperature: -23℃ To 10℃
Color: White Power Supply: 220V/1Ph/50Hz, 380/3Ph/50Hz,60Hz Optional
Application: Small Cool Room Condition: Brand New
High Light:

2HP Monoblock Cold Room Refrigeration Unit

,

170W Condenser monoblock refrigeration unit

,

125KG monoblock refrigeration unit

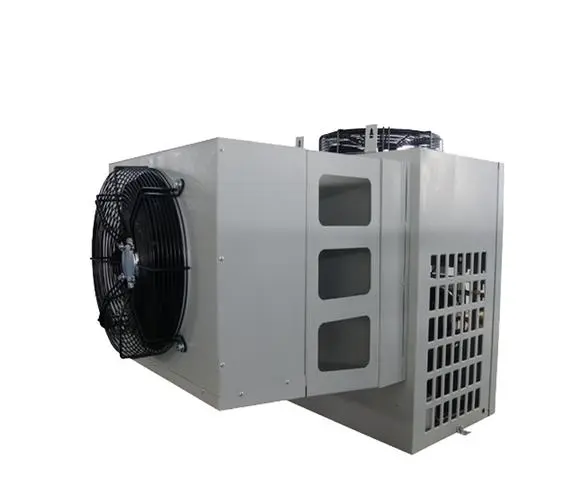

Side-In Monoblock Unit 2HP For Samll Cold Room Freezer Room,Side Mounted Monoblock Refrigeration Unit For Cold Storage



All in one design, side in type installation,only need to reserve a corresponding size window at the side plate of the cold room, then gently push the machine in, switch on to start up. Widely used in medical, catering, fresh distribution and other small cold room which space is restricted.

Advantages and Features



1.Temperature range: ambient temperature:-15℃~+48℃, room temperature: -18℃~+10℃;



2. Application: Suitable for medical, catering, cold chain, food, dairy and other fields of fresh keeping and cold storage;



3. Compact structure, easy to install,only need to reserve corresponding size on the side plate of the cold room, the installation could be done within 20 minutes;



4. Electronic expansion valve with fuzzy control : high refrigeration efficiency, fast cooling speed.



5. Hot gas defrosting on demand: High efficiency and energy saving, 3 to 5 minutes to complete the defrosting,

compare with electrical heater, energy saving more than 80%;



6. Intelligent control system, start up to running, no need of testing.



2HP 125KG Monoblock Cold Room Refrigeration Unit 170W Condenser 0

Specifications -Side in Monoblock



Model CM-SAL010QYP CM-SAL020QYP CM-SAL030QYP
Cooling Capacity Room Temp (℃) -23 W 775 1628 2364
-18 W 930 1953 2790
-10 W 1221 2564 3663
0 W 1790 3759 5370
5 W 2110 4431 6330
10 W 2420 5082 7260
Norminal Power W 1255 2005 2948
Room Temp. Range -23℃ to 10℃
Power Supply   220V~/50Hz 380V/3N ~50Hz 220V~/50Hz
Refrigerant   R404a
Compressor Type   Rotary Compressor (With Liquid Injection)
Oty PCS 1 1 1
Power W 1063 1730 2398
Condenser Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 1 1
Power W 85 170 85x2
Evaporator Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 1 1
Power W 68 85 85x2
Dimensions (LXDXH) mm 500x769x659 607x884x819 858x884x829
Net Weight kg 67 125 140





Roof-in Monoblock Unit for small Cold Storage,Freezer Room,Chiller Room,1HP / 2HP /3HP

2HP 125KG Monoblock Cold Room Refrigeration Unit 170W Condenser 1



General information

All in one design, top in type installation,only need to reserve a corresponding size window at the side plate of the cold room, then gently push the machine in, switch on to start up. Widely used in medical,catering,fresh distribution and other small cold room which space is restricted.



Advantages and Features



1.Temperature range: ambient temperature:-15℃~+48℃,room temperature: -18℃~+10℃;



2. Application: Suitable for medical, catering, cold chain, food, dairy and other fields of fresh keeping and cold storage;



3. Compact structure, easy to install,only need to reserve corresponding size on the side plate of the cold room, the installation could be done within 20 minutes;



4. Electronic expansion valve with fuzzy control : Refrigeration efficiency is high, the cooling speed is fast;



5. Hot gas defrosting on demand: High efficiency and energy saving, 3 to 5 minutes to complete the defrosting, compare with electrical heater, energy saving more than 80%;



6. Intelligent control system, start up to running, no need of testing.



Specifications-Roof in Monoblock



Model CM-TAM010QYP CM-TAM020QYP CM-TAM030QYP
Cooling Capacity Room Temp (℃) -25 W _ 2772 3162
-23 W _ 3187 3471
-20 W 12 3448 3932
-15 W 2026 4191 4781
-10 W 2497 5104 5822
-5 W 3027 6115 6976
Norminal Power W 1153 2106 2734
Room Temp. Range -23℃ to 10℃
Power Supply   220V~/50Hz 380V/3N ~50Hz 220V~/50Hz
Refrigerant   R404a
Compressor Type   Rotary Compressor (With Liquid Injection)
Oty PCS 1 1 1
Power W 1000 1800 2300
Condenser Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 1 1
Power W 85 170 230
Evaporator Type   High Efficiency Low Noise Axial Fan
Oty PCS 1 2 3
Power W 68 68x2 68x3
Dimensions (LXDXH) mm 790x510x748 890x561x810 1080x608x783
Net Weight kg 69 96 121







Monoblock Condensing Units Components



  • Read More About Monoblock Unit

    Expansion by thermostatic valve

  • Read More About Monoblock Unit

    High and low pressur control

  • Read More About Monoblock Unit

    Bizzor Cpmpressor

  • Read More About Monoblock Unit

    Systems for partial evaporation of defrosting water

  • Read More About Monoblock Unit

    High and low pressur control

  • Read More About Monoblock Unit

    Ceramic filter dryer

Why Xuexiang Refrigeration

is your first choice of cold room manufacturer and supplier?

 Read More About Monoblock Unit



Quality Assurance



Xuexiang has its own quality inspection system strictly implementing it.From materials enter the factory,each production step has dedicated quality inspection personnel to control the production quality;Raw materials,compressors,copper pipes,and external insulation boards,we all cooperate with well-knowndomestic and foreign brands.

Stable Delivery Time



Xuexiang Refrigeration has a 6,000-square-meter partsstorage warehouse with sufficient reserves of various types of compressors and evaporators,54,000 square meters of production space,20 technicians,and 260 Front-line workers,to ensure that after the order is placed,the products can be delivered to the user in theshortest time;



Read More About Monoblock Unit



Real-time Control Of Product



From the time the order is placed to the time that the goods arrive at the port,Xuexiang Refrigeration will regularly u update you with product production photos and freight status to ensure that you know the status of your order at any time;

Full Solutions Provider



Xuexiang Refrigeration has a 6,000-square-meter partsstorage warehouse with sufficient reserves of various types of compressors and evaporators,54,000 square meters of production space,20 technicians,and 260 Front-line workers,to ensure that after the order is placed,the products can be delivered to the user in theshortest time;



 Read More About Monoblock Unit



Full Services



 Xuexiang Refrigeration services include communication and analysis of storage needs,design of storage solutions,production and transportation of cold storage,installation and commissioning of cold storage andsubsequent maintenance of cold storage.365/24 online service.

12 Months Warranty Period



After the goods are shipped,Xuexiang Refrigeration will provide a warranty period of up to 18 months for the products.The wearing parts and consumables will be supplied at factory price for lifetime.
